This new generation of street lights enjoy 21 light distribution curves, heat and strike proof glass with appealing sight and aerodynamic design.implementing High Tech, IP66 optical compartment, opening the compartment door side up which lower the service and maintenance cost are the other advantages of this brand of light. | |
TECHNICAL DATA | |
Body: | Die-cast aluminum, painted with electrostatic powder coated, after choromated treatment. |
Reflector: | High polished single piece anodized aluminum. |
Glass: | Curved security glass. |
Metallic Piece: | Galvanized steel or Stainless steel. |
Finish: | Gray RAL7038 (other color on request). |
Lamp holder: | Porcelain with silver plated contacts. |
Ingress Protection: | IP66 for optical compartment and IP44 for Body Compartment (IP54 on request). |
Sealing: | Silicon gaskets. |
Installation: | Bracket, for side or entry 40 up to 60mm. & for vertical entry 50 up to 70mm. |
Maintenance: | Easy access to the control gear by pressing on the spring fastener and raising the cover, no tools needed. |
PRODUCT LIST | ||
Product Code | Lamp | Description |
ST220/125HPM | 1x125HPM | Suitable for 1 lamp 125W Mercury |
ST220/250HPM | 1x250HPM | Suitable for 1 lamp 250W Mercury |
ST220/100HPS | 1x100HPS | Suitable for 1 lamp 100W High Pressure Sodium |
ST220/150HPS | 1x150HPS | Suitable for 1 lamp 150W High Pressure Sodium |
ST220/250HPS | 1x250HPS | Suitable for 1 lamp 250W High Pressure Sodium |
ST220/400HPS | 1x400HPS | Suitable for 1 lamp 400W High Pressure Sodium |
ST220/250MH | 1x250MH | Suitable for 1 lamp 250W Metal Halide |
ST220/400MH | 1x400MH | Suitable for 1 lamp 400W Metal Halide |
ST230/250HPM | 1x250HPM | Suitable for 1 lamp 250W Mercury |
ST230/250HPS | 1x250HPS | Suitable for 1 lamp 250W High Pressure Sodium |
ST230/400HPS | 1x400HPS | Suitable for 1 lamp 400W High Pressure Sodium |
ST230/600HPS | 1x600HPS | Suitable for 1 lamp 600W High Pressure Sodium |
ST230/250MH | 1x250MH | Suitable for 1 lamp 250W Metal Halide |
ST230/400MH | 1x400MH | Suitable for 1 lamp 400W Metal Halide |

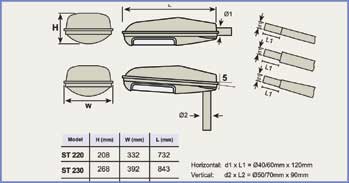

DIMENSION | |
Dimension Drawing: ST220 (PDF, 43Kbyte) |
