TECHNICAL DATA | |
Control Gear Housing: | Die-cast aluminum, painted with electrostatic powder coated, after choromated treatment. |
Reflector: | High polished single piece anodized aluminum. |
Cover: | Tempered glass with fastening devices with optional guard. |
Finish: | Black RAL9005 (other color on request). |
Electrical Insulation: | Class I, Class II by order. |
Lamp holder: | Porcelain with silver plated contacts. |
Ingress Protection: | IP54 for optical compartment and IP65 for Body Compartment. |
Sealing: | Silicon gaskets. |
Installation: | Suspension type by conduit, adjustable bracket and chain. |
Maintenance: | Easy access to the control gear. |
PRODUCT LIST | ||
Product Code | Lamp | Description |
HI350/125HPM | 1x125HPM | Suitable for 1 lamp 125W Mercury |
HI350/250HPM | 1x250HPM | Suitable for 1 lamp 250W Mercury |
HI350/400HPM | 1x400HPM | Suitable for 1 lamp 400W Mercury |
HI350/100HPS | 1x100HPS | Suitable for 1 lamp 100W High Pressure Sodium |
HI350/150HPS | 1x150HPS | Suitable for 1 lamp 150W High Pressure Sodium |
HI350/250HPS | 1x250HPS | Suitable for 1 lamp 250W High Pressure Sodium |
HI350/400HPS | 1x400HPS | Suitable for 1 lamp 400W High Pressure Sodium |
HI350/250MH | 1x250MH | Suitable for 1 lamp 250W Metal Halide |
HI350/400MH | 1x400MH | Suitable for 1 lamp 400W Metal Halide |

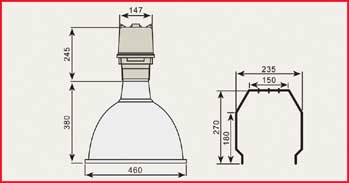

DIMENSION | |
Dimension Drawing: HI350 (PDF, 43Kbyte) |
