RI210

TECHNICAL DATA
Body: Made of sheet steel, painted with electrostatic powder coated, after phosphate treatment.
Reflector: Highly pure anodized aluminum 99.85%.
Cover: Tempered glass.
Finish: White RAL9016 (other color on request).
Electrical Insulation: Class I, Class II by order.
Lamp holder: Porcelain with silver plated contacts.
Ingress Protection: IP54.
Sealing: Silicon gaskets.
Installation: Recess mounted.
Maintenance: Easy access to the control gear.
PRODUCT LIST
Product Code Lamp Description
RI210/125HPM 1x125HPM Suitable for 1 lamp 125W Mercury
RI210/250HPM 1x250HPM Suitable for 1 lamp 250W Mercury
RI210/400HPM 1x400HPM Suitable for 1 lamp 400W Mercury
RI210/100HPS 1x100HPS Suitable for 1 lamp 100W High Pressure Sodium
RI210/150HPS 1x150HPS Suitable for 1 lamp 150W High Pressure Sodium
RI210/250HPS 1x250HPS Suitable for 1 lamp 250W High Pressure Sodium
RI210/400HPS 1x400HPS Suitable for 1 lamp 400W High Pressure Sodium
RI210/250MH 1x250MH Suitable for 1 lamp 250W Metal Halide
RI210/400MH 1x400MH Suitable for 1 lamp 400W Metal Halide

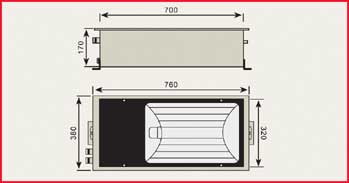

DIMENSION
Dimension Drawing: RI210(PDF, 43Kbyte)
