470AC

TECHNICAL DATA
Body: Made of extruded aluminum with die-cast welded end caps, painted with electrostatic powder coated, after chromated treatment.
Gear plate: Sheet steel, painted with electrostatic powder coated white (RAL9016).
Diffuser: Made of clear, impact-resistant and UV-stabilized polycarbonate.
Clips: Made of stainless steel.
Electrical Insulation: Class I, Class II by order.
Lamp holder: G13, Polycarbonate.
Ingress Protection: IP65.
Sealing: Silicon gaskets.
Installation: By 2 stainless steel special bracket.
Maintenance: Easy access to the control gear.
PRODUCT LIST
Product Code Lamp Description
470AC/118 1x18W Suitable for 1 lamp 18W Fluorescent
470AC/218 2x18W Suitable for 2 lamp 18W Fluorescent
470AC/136 1x36W Suitable for 1 lamp 36W Florescent
470AC/236 2x36W Suitable for 2 lamp 36W Fluorescent
470AC/158 1x58W Suitable for 1 lamp 58W Fluorescent
470AC/258 2x58W Suitable for 2 lamp 58W Fluorescent

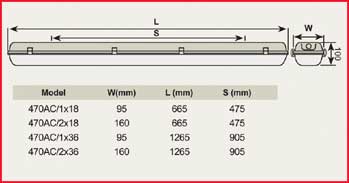

DIMENSION
Dimension Drawing: 470AC(PDF, 43Kbyte)
